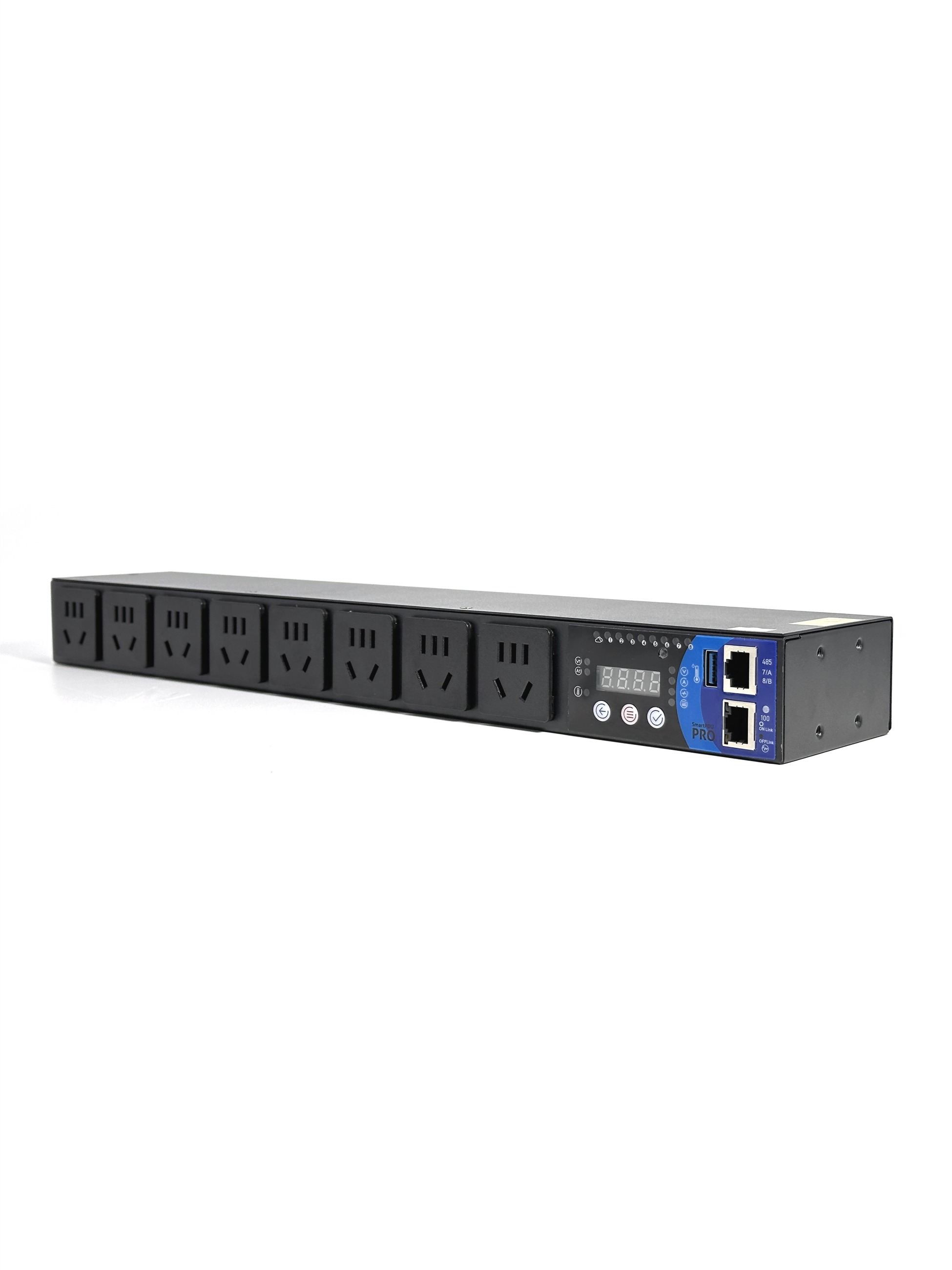

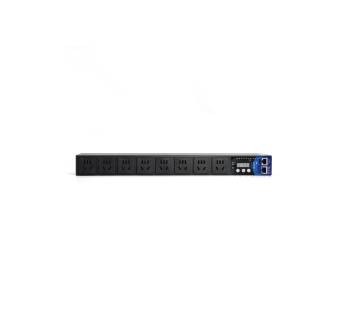

Apro Series 8-Ports 10A CN standards YS24841

Apro Series Product’s Function Description

1. Overall functional classification

Apro series products adopt the function mode of Master control and branch control, which can realize centralized monitoring and independent control of each branch.

2. Hardware Configuration

1. Display screen : Equipped with a 4-digit digital tube display screen, which can intuitively display relevant information .

2. Network port : There is 1 network port to facilitate the device to connect to the Internet.

3. Number of Sockets : Provide 1, 2, 4, 6, 8 Outlets horizontal installation and other Ports to meet the needs of different scenarios.

4. interface

◦ 485 interface : built-in by default, convenient for connection and data exchange with other devices supporting 485 communication protocol.

◦ 232 interface : optional configuration, suitable for specific short-distance, low-speed communication scenarios.

3. Power parameter monitoring function

It can monitor the total voltage, total current, total power, total electricity, power factor and other power parameters in real time, allowing users to fully understand the power consumption and power efficiency of the equipment.

4. Environmental monitoring function

1. Temperature and humidity monitoring : It has 1-way temperature and humidity monitoring function, which can sense the temperature and humidity changes in the surrounding environment of the equipment in real time to prevent the normal operation of the equipment from being affected by abnormal temperature and humidity.

2. Dry contact : There is 1 dry contact, which can be connected to other sensors or devices to achieve richer environmental monitoring and control function expansion.

5. Language support

It supports  English and  Chinese, making it convenient for users from different regions and language habits.

6. Timing and power on/off function

1. Scheduled tasks : Supports setting 20 scheduled tasks, and can control the power on and off of the device according to the preset time to achieve intelligent power management.

2. Sequential power on/off : With the sequential power on/off function, the connected devices can be turned on or off in the set order to avoid current shock caused by simultaneous startup and protect the safety of the equipment and the power grid.

7. Management and development functions

1. Port Remarks : Allows users to add notes to each port to facilitate the distinction and management of devices connected to different ports.

2. Time synchronization : Supports NTP time synchronization to ensure accurate device time and enable functions such as scheduled tasks to be executed accurately.

3. Development support : Open API interface supports secondary development, allowing users to customize personalized functions according to their own business needs and achieve deep integration with existing management systems.

4. Logging function : With alarm logging and operation logging functions, it can record in detail abnormal alarm information and user operation records during equipment operation, which is convenient for troubleshooting and audit tracing.

8. Communication protocol support

Supports multiple network and industrial communication protocols such as HTTP, HTTPS, IPV4, DHCP, MODBUS - RTU, MQTT, etc. to ensure the stability and compatibility of device network connections and facilitate integration with different systems.

9. Other functions

1. Infrared function : Support infrared rprm function, which can be used for close-range configuration and management through infrared devices.

2. Power-on status setting : The power-on status can be set to hold, on or off to flexibly meet the initial power-on requirements of different devices.

3. Online upgrade : Supports OTA online upgrade, users can obtain the latest functions and performance optimizations in time without disassembling the device.

4. Specific platform support : supports home assistant and can be connected with the platform to realize more functions.

10. Installation method

It adopts horizontal installation method.
